Installation Guide

This guide provides step-by-step instructions to install and run the Moil Meeting application on your system.

Operating System Requirements

Windows

Prerequisites for Windows

  1. Download and install OBS Studio.
  2. Open OBS and click Start Virtual Camera before launching Moil Meeting.

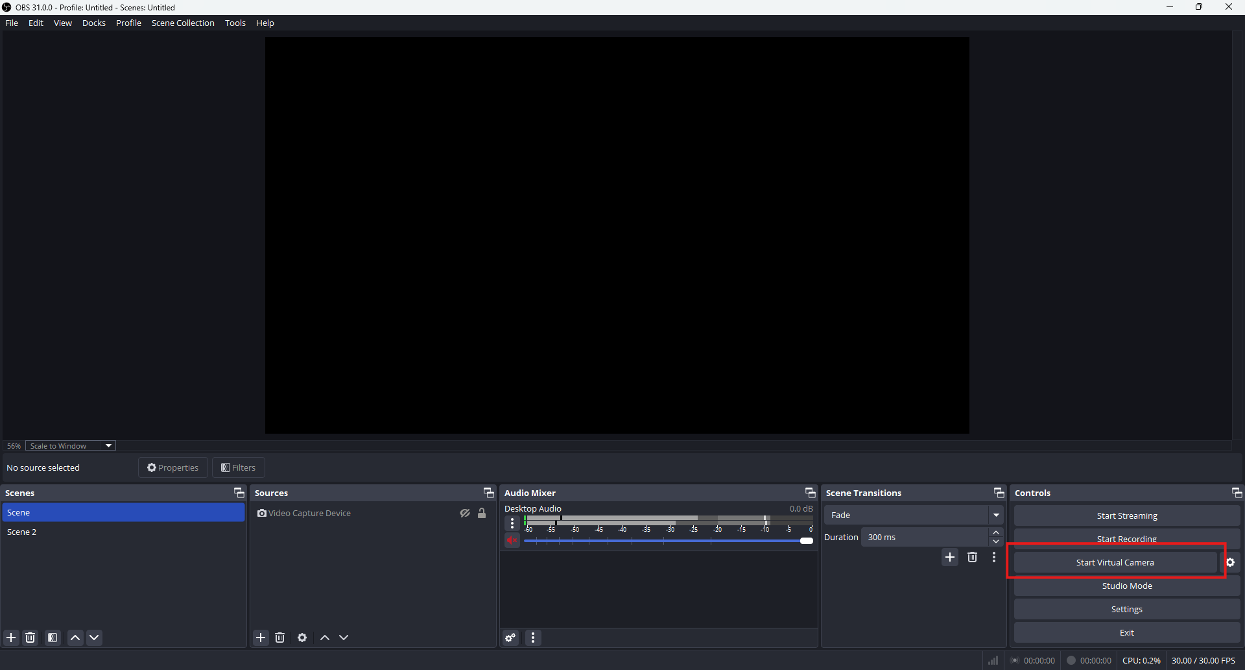

Start Camera in OBS Start Virtual Camera in OBS Studio

Linux

Prerequisites for Linux

  1. Disable Secure Boot in BIOS settings.

  2. Install the v4l2loopback kernel module:

    sudo apt install v4l2loopback-dkms

User Installation Guide

Download Moil Meeting

  1. Visit the Video Conference GitHub Repository (Releases).
  2. Download the appropriate installer:
    • Windows: FisheyeVideoConferenceSystemv2.0.3.exe
    • Linux: FisheyeVideoConferenceSystem-v2.0.3-linux.7z

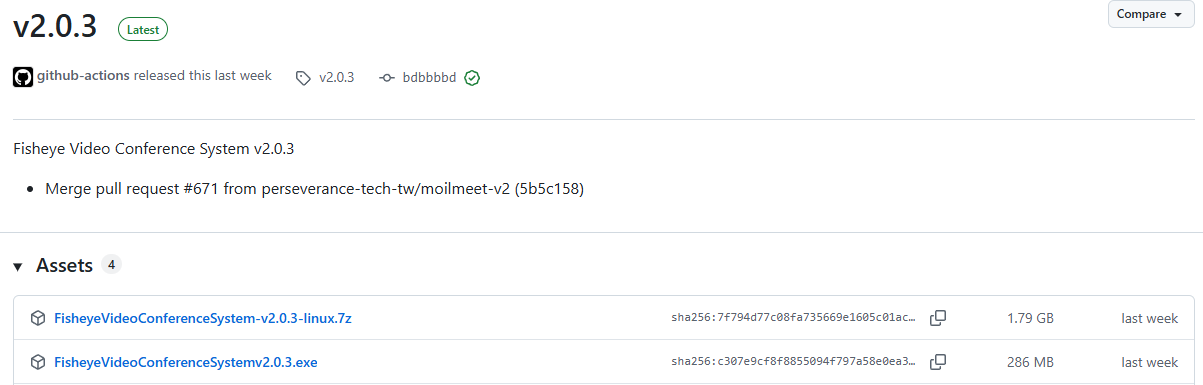

Video Conference Repository Repository Release Page

Windows Installation

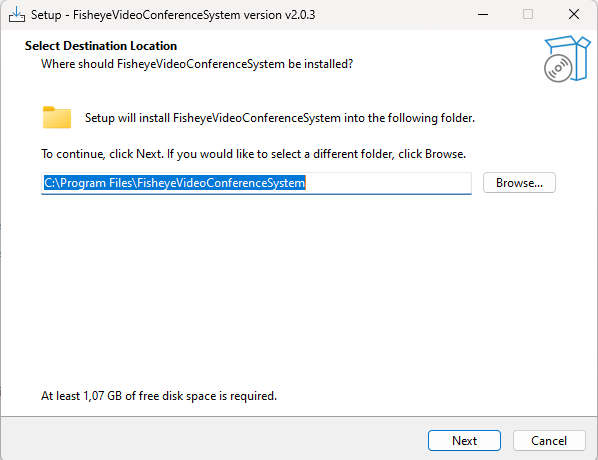

Step 1: Run Installer Right-click the installer file and select Run as Administrator to ensure proper permissions.

Run as Administrator

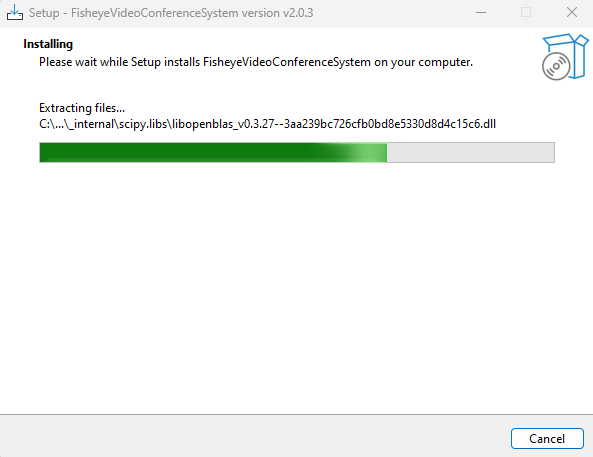

Step 2: Follow Wizard Proceed through the installation wizard, selecting your preferred destination folder. wait installation

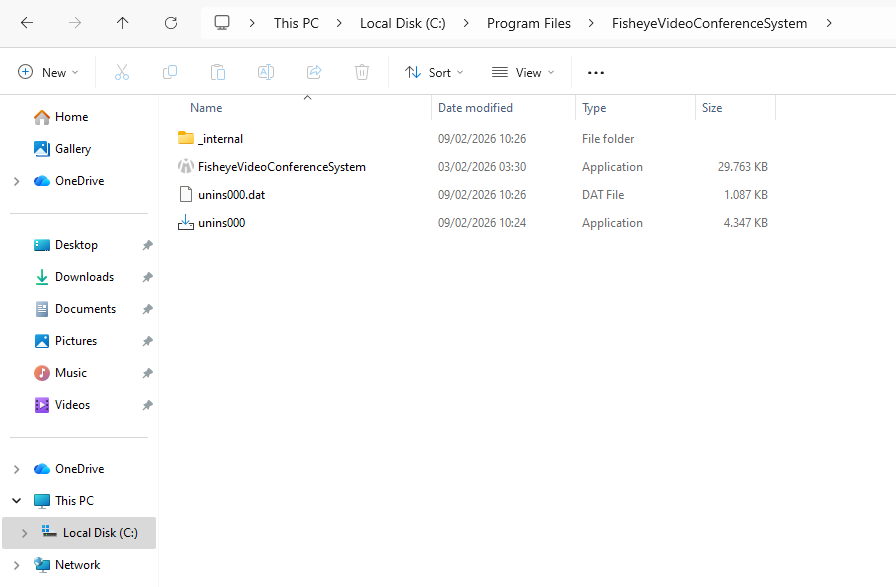

Step 3: Access Application After installation, locate the application in your selected folder. * FisheyeVideoConference.exe — Launch the application. * unins000 — Uninstall the application.

Application Files

Step 4: Launch You are now ready to use the Moil Meeting system.

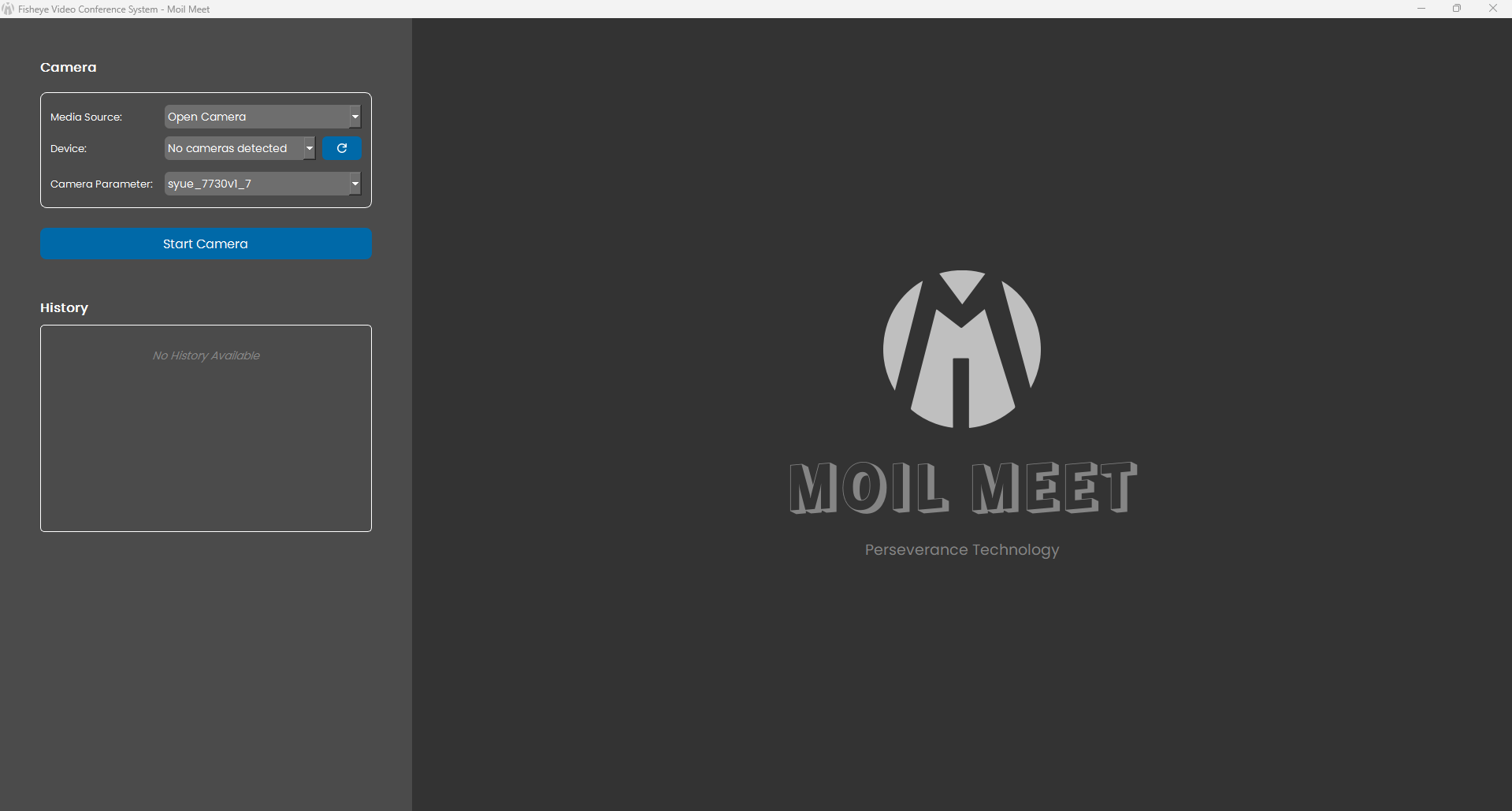

Moil Meeting Application Moil Meeting Application Interface

Linux Installation

Step 1: Extract Archive Unzip the downloaded .7z archive file.

Step 2: Run Installation Script Navigate to the extracted folder and execute the install script:

./install.sh   # Install application

To remove the application later, use:

./uninstall.sh # Uninstall application

Step 3: Launch Once installed, the application shortcut will appear on your desktop.

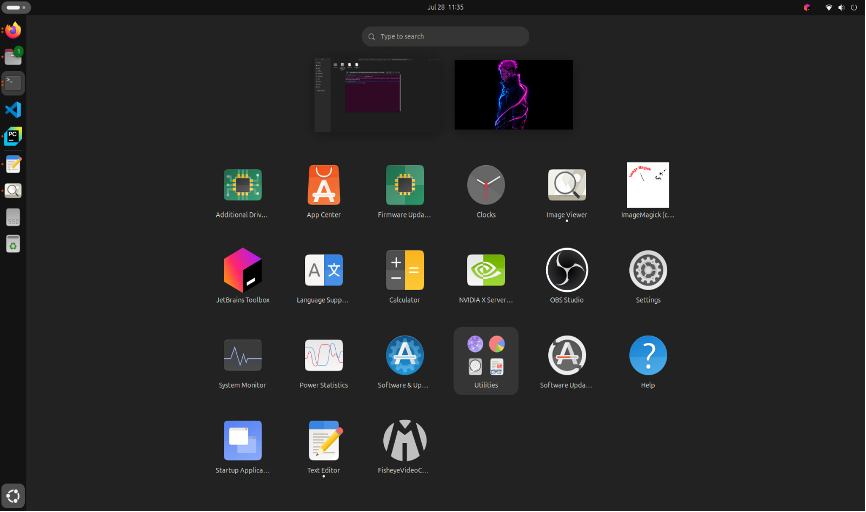

Linux Moil Meeting Application Moil Meeting on Linux Desktop

Developer Installation Guide

This section is for developers who want to run Moil Meeting from source code.

Prerequisites

Component Requirement
OS Ubuntu or Windows
Python Version 3.9 or higher
Tools Git installed

Setup Steps

  1. Clone Repository:

    git clone https://github.com/username/video-conference-using-fisheye.git
cd video-conference-using-fisheye

  2. Set Up Virtual Environment:

    • Windows:
      python -m venv venv
venv\Scripts\activate
    • Linux/macOS:
      python3 -m venv venv
source venv/bin/activate

  3. Install Dependencies: First, install core packages:

    pip install opencv-python pyvirtualcam ultralytics pygrabber mediapipe
    Then, install all requirements:
    pip install -r requirements.txt

  4. Run Application: Navigate to src and execute:

    python main.py

Post-Installation

Success

Installation is complete. Please proceed to the Usage Guide to learn how to operate Moil Meeting.

Troubleshooting

Issue Type Solution
Windows Camera Ensure OBS Virtual Camera is active before launching the app. Run as Administrator if issues persist.
Linux Boot Verify that Secure Boot is disabled in your BIOS settings.
Linux Modules Check if the loopback module is loaded: lsmod | grep v4l2loopback.
Developer Env Ensure your virtual environment is activated and Python version is >= 3.9.

For additional support, refer to the Operations Guide or contact the Moil Meeting support team.
